Trynox Sanitary 3A Welding Equal Tee (With Straight Ends)

SKU:
T7AWL
UPC:
7453017320785
On Sale
  • Trynox Sanitary 3A Welding Equal Tee (With Straight Ends)
  • Trynox Sanitary 3A Welding Equal Tee (With Straight Ends)
  • Trynox Sanitary 3A Welding Equal Tee (With Straight Ends)
$8.83 - $75.60

Description

Take Control In Your Hygienic Fluid Industry

Effectively and equally distribute the flow of your liquid products with Chemseal’s Trynox sanitary stainless steel 3A welding equal tee.

  • Fits to sanitary stainless steel tubing
  • Connect, terminate, control and change flow direction
  • Comes in multiple sizes and tube wall thickness
  • Maximum operating pressure rating of 200 psi at 70 degrees Fahrenheit ambient temperature

With a variety of sizes and tube wall thicknesses, there’s a right sanitary fitting that perfectly fits the needs and desires of your hygienic fluid operation. High-quality stainless steel fittings will yield high-quality results for your business. Get the right parts you need, including a sanitary welding equal tee. Chemseal is an industry-leading expert when it comes to providing the right sanitary stainless steel fittings and tools for your hygienic processes.

SPECS:

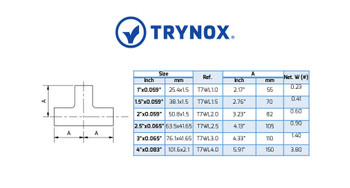

  • Trynox T7AWL series sanitary 3A welding equal tee (with straight ends)
  • 304 or 316L grade
  • 1”, 1.5”, 2”, 2.5”, 3” and 4” sizes

Tri-Clamp Sizing Guide

Tri-Clamp Fittings and Gasket Sizing Guide

Sanitary Fitting Dimensions



Sanitary SizeOD of Flange EndID of TubeOD of Tube
1/2″ 0.992 0.370 0.500
3/4″ 0.992 0.620 0.750
1″ 1.984 0.870 1.000
1 1/2″ 1.984 1.370 1.500
2″ 2.516 1.870 2.000
2 1/2″ 3.047 2.370 2.500
3″ 3.579 2.870 3.000
4″ 4.682 3.834 4.000
6″ 6.562 5.782 6.000
8″ 8.602 7.782 8.000

Tubing Dimensional Tolerances

A-270 Sanitary Tubing Dimensional Tolerances

Tubing



A tube, or tubing, is a long hollow cylinder used for moving fluids (liquids or gases)

For Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries must be manufactured in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra, Following standards like ASTM A-269; A-270, DIN 11805 or ENxxxxx

All dimensions in inches (mm)

Size OD

Wall Thickness

Outside Diameter

Length

Wall

1" (25.4)

0.065" (1.65)/0.049" (1.25)

+/-0.005 (0.13)

+1/8" (3.18)

- 0 +/-10.0%

1-1/2" (38.1)

0.065" (1.65)/0.049" (1.25)

+/-0.008 (0.20)

+1/8" (3.18)

- 0 +/-10.0%

2" (50.8)

0.065" (1.65)/0.049" (1.25)

+/-0.008 (0.20)

+1/8" (3.18)

- 0 +/-10.0%

2-1/2" (63.5)

0.065" (1.65)

+/-0.010 (0.25)

+1/8" (3.18)

- 0 +/-10.0%

3" (76.2)

0.065" (1.65)

+/-0.010 (0.25)

+1/8" (3.18)

- 0 +/-10.0%

4" (101.6)

0.083" (2.11)

+/-0.015 (0.38)

+1/8" (3.18)

- 0 +/-10.0%

Gasket Compatibility Chart

Sanitary Gaskets General Performance Properties



Nitrite (Buna)

Fluoro-Elastomer(Viton)

Platinum Cured Silicone Elastomer

Ethylene-Propylene Diene Monomer(EPDM)

PolyTetra Fluoro Ethylene(Teflon)

Tufsteel

Letter Designation

SFY

PX

EPDM

GTS

Sanitary Gasket Color Code

RED

Yellow & White

Pink

Green

Remains White

Remains Grey

Max Temperature Intermittent

240Deg F

410Deg F

580Deg F

300Deg F

450Deg F

578Deg F

Max Temperature Continuous

210Deg F

380Deg F

490Deg F

260Deg F

400Deg F

526Deg F

Minimum Temperature

-65

-20

-85

-70

-350

-370

USP Class VI

No

Yes

Yes

Yes

Yes

Yes

Steam in Place Performance

Poor

Good

Good

Good

Good

Excellent

Acids, Dilute

Good

Excellent

Good

Good

Excellent

Excellent

Alkalies

Good

Good

Excellent

Excellent

Excellent

Excellent

Alcohol, Glycols

Excellent

Good

Excellent

Excellent

Excellent

Excellent

Animal Oils & Fats

Excellent

Excellent

Good

Fair

Excellent

Excellent

Soaps, Bleaches, Detergents

Fair/Good

Good

Fair

Excellent

Excellent

Excellent

Vegetable Oil

Excellent

Excellent

Excellent

Fair

Excellent

Excellent

Water

Good

Excellent

Good

Excellent

Excellent

Excellent
