Description
Our Trynox Heavy Duty Sanitary Clamps Are Guaranteed To Get The Job Done Right
Control the pressure and flow of your sanitary fluids operations with Chemseal’s Trynox sanitary heavy duty clamp.
- Fits to sanitary stainless steel tubing
- Surface finishing 180 Grit ID/150 Grit OD
- Maximum operating pressure rating of 140 psi at 70 degrees Fahrenheit ambient temperature
- Suitable for use in food, beverage, and other hygienic applications
- The tri-clamp heavy duty available in only 304 stainless steel alloy
- Available in sizes ranging from 1/2 inch all the way to 8 inches
Looking to maintain massive amounts of pressure in your hygienic fluids operations? Our Trynox Sanitary Heavy Duty Clamp can handle the job, thanks to high-quality sanitary stainless steel. With Chemseal’s Trynox sanitary heavy duty clamp, you can effectively connect, terminate, control and change the direction of tubing for multiple industry applications. Quality heavy duty sanitary stainless steel clamps are essential to maintaining a good hygienic fluids operation. Chemseal also carries many other sanitary fittings and sanitary stainless steel valves to assist with your operations.
Tri-Clamp Sizing Guide
Tri-Clamp Fittings and Gasket Sizing Guide
| Sanitary Size | OD of Flange End | ID of Tube | OD of Tube |
|---|---|---|---|
| 1/2″ | 0.992 | 0.370 | 0.500 |
| 3/4″ | 0.992 | 0.620 | 0.750 |
| 1″ | 1.984 | 0.870 | 1.000 |
| 1 1/2″ | 1.984 | 1.370 | 1.500 |
| 2″ | 2.516 | 1.870 | 2.000 |
| 2 1/2″ | 3.047 | 2.370 | 2.500 |
| 3″ | 3.579 | 2.870 | 3.000 |
| 4″ | 4.682 | 3.834 | 4.000 |
| 6″ | 6.562 | 5.782 | 6.000 |
| 8″ | 8.602 | 7.782 | 8.000 |
Tubing Dimensional Tolerances
A-270 Sanitary Tubing Dimensional Tolerances
Tubing
A tube, or tubing, is a long hollow cylinder used for moving fluids (liquids or gases)
For Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries must be manufactured in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra, Following standards like ASTM A-269; A-270, DIN 11805 or ENxxxxx
All dimensions in inches (mm)
|
Size OD |
Wall Thickness |
Outside Diameter |
Length |
Wall |
|
1" (25.4) |
0.065" (1.65)/0.049" (1.25) |
+/-0.005 (0.13) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
1-1/2" (38.1) |
0.065" (1.65)/0.049" (1.25) |
+/-0.008 (0.20) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
2" (50.8) |
0.065" (1.65)/0.049" (1.25) |
+/-0.008 (0.20) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
2-1/2" (63.5) |
0.065" (1.65) |
+/-0.010 (0.25) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
3" (76.2) |
0.065" (1.65) |
+/-0.010 (0.25) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
4" (101.6) |
0.083" (2.11) |
+/-0.015 (0.38) |
+1/8" (3.18) |
- 0 +/-10.0% |
Gasket Compatibility Chart
Sanitary Gaskets General Performance Properties
|
Nitrite (Buna) |
Fluoro-Elastomer(Viton) |
Platinum Cured Silicone Elastomer |
Ethylene-Propylene Diene Monomer(EPDM) |
PolyTetra Fluoro Ethylene(Teflon) |
Tufsteel |
|
|
Letter Designation |
U |
SFY |
PX |
EPDM |
G |
GTS |
|
Sanitary Gasket Color Code |
RED |
Yellow & White |
Pink |
Green |
Remains White |
Remains Grey |
|
Max Temperature Intermittent |
240Deg F |
410Deg F |
580Deg F |
300Deg F |
450Deg F |
578Deg F |
|
Max Temperature Continuous |
210Deg F |
380Deg F |
490Deg F |
260Deg F |
400Deg F |
526Deg F |
|
Minimum Temperature |
-65 |
-20 |
-85 |
-70 |
-350 |
-370 |
|
USP Class VI |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Steam in Place Performance |
Poor |
Good |
Good |
Good |
Good |
Excellent |
|
Acids, Dilute |
Good |
Excellent |
Good |
Good |
Excellent |
Excellent |
|
Alkalies |
Good |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
|
Alcohol, Glycols |
Excellent |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
|
Animal Oils & Fats |
Excellent |
Excellent |
Good |
Fair |
Excellent |
Excellent |
|
Soaps, Bleaches, Detergents |
Fair/Good |
Good |
Fair |
Excellent |
Excellent |
Excellent |
|
Vegetable Oil |
Excellent |
Excellent |
Excellent |
Fair |
Excellent |
Excellent |
|
Water |
Good |
Excellent |
Good |
Excellent |
Excellent |
Excellent |
Shipping & Return Policy
Shipping & Return Policy
All orders are shipped within 24 hours Monday - Friday 8am - 5pm. If a tracking # is provided by the shipping carrier, we will update your order with the tracking information.
Shop with confidence with our 30 days hassle free returns no questions asked, just return the product and get a 90% refund.
If you are not seeking a refund, instead you want to exchange your item for a different size or material, or just a completely different product you can! You will not be subject to a restocking fee in this case, but you still will have to pay return shipping.
Related Products
Trynox Sanitary Tri Clamp Stainless Steel Spool
Trynox
Trynox Sanitary Tri Clamp End Cap
Trynox

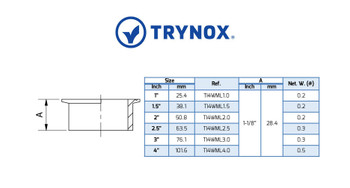

Trynox Sanitary Tri Clamp Ferrule
Trynox

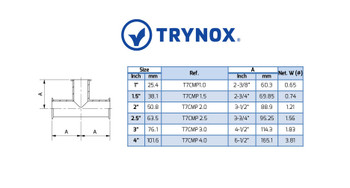

Trynox Sanitary Tri Clamp Equal Tee
