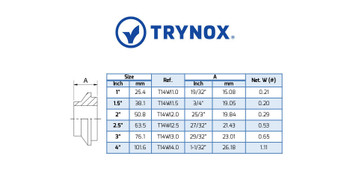

Trynox Sanitary Clamp Long Welding Ferrule

SKU:
T14WML
UPC:
7453017321744
  • Trynox Sanitary Clamp Long Welding Ferrule
  • Trynox Sanitary Clamp Long Welding Ferrule
  • Trynox Sanitary Clamp Long Welding Ferrule
  • Trynox Sanitary Clamp Long Welding Ferrule
$4.59 - $12.74

Description

Use This Ferrule To Effectively Seal A Tube Or Hose

This Trynox Sanitary Clamp Long Welding Ferrule will provide a leak-resistant seal on a tube or a hose by welding, and has a clamp connection.

  • Fits to sanitary stainless steel tubing
  • Surface finishing 180 Grit ID/150 Grit OD
  • Maximum operating pressure rating of 200 psi at 70 degrees Fahrenheit ambient temperature
  • Suitable for use in food, beverage, and other hygienic applications
  • The long weld ferrule is available in both 304 and 316L stainless steel alloys
  • Available in sizes ranging from 1 inch all the way to 4 inches

Chemseal carries Trynox sanitary clamp long welding ferrules, perfect for sealing tubes or hose fittings with a clamp connection. We have sanitary fittings and Trynox sanitary clamps that are available in threaded or unthreaded applications with multiple sizes and tube wall thicknesses, making our products customizable for your business. Regardless of the industry that you’re in, you can trust Chemseal’s products, like our Trynox Sanitary Clamp Long Welding Ferrule or other sanitary stainless steel fittings, to assure that your hygiene fluid operation is done right.



Tri-Clamp Sizing Guide

Tri-Clamp Fittings and Gasket Sizing Guide

Sanitary Fitting Dimensions



Sanitary SizeOD of Flange EndID of TubeOD of Tube
1/2″ 0.992 0.370 0.500
3/4″ 0.992 0.620 0.750
1″ 1.984 0.870 1.000
1 1/2″ 1.984 1.370 1.500
2″ 2.516 1.870 2.000
2 1/2″ 3.047 2.370 2.500
3″ 3.579 2.870 3.000
4″ 4.682 3.834 4.000
6″ 6.562 5.782 6.000
8″ 8.602 7.782 8.000

Tubing Dimensional Tolerances

A-270 Sanitary Tubing Dimensional Tolerances

Tubing



A tube, or tubing, is a long hollow cylinder used for moving fluids (liquids or gases)

For Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries must be manufactured in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra, Following standards like ASTM A-269; A-270, DIN 11805 or ENxxxxx

All dimensions in inches (mm)

Size OD

Wall Thickness

Outside Diameter

Length

Wall

1" (25.4)

0.065" (1.65)/0.049" (1.25)

+/-0.005 (0.13)

+1/8" (3.18)

- 0 +/-10.0%

1-1/2" (38.1)

0.065" (1.65)/0.049" (1.25)

+/-0.008 (0.20)

+1/8" (3.18)

- 0 +/-10.0%

2" (50.8)

0.065" (1.65)/0.049" (1.25)

+/-0.008 (0.20)

+1/8" (3.18)

- 0 +/-10.0%

2-1/2" (63.5)

0.065" (1.65)

+/-0.010 (0.25)

+1/8" (3.18)

- 0 +/-10.0%

3" (76.2)

0.065" (1.65)

+/-0.010 (0.25)

+1/8" (3.18)

- 0 +/-10.0%

4" (101.6)

0.083" (2.11)

+/-0.015 (0.38)

+1/8" (3.18)

- 0 +/-10.0%

Gasket Compatibility Chart

Sanitary Gaskets General Performance Properties



Nitrite (Buna)

Fluoro-Elastomer(Viton)

Platinum Cured Silicone Elastomer

Ethylene-Propylene Diene Monomer(EPDM)

PolyTetra Fluoro Ethylene(Teflon)

Tufsteel

Letter Designation

SFY

PX

EPDM

GTS

Sanitary Gasket Color Code

RED

Yellow & White

Pink

Green

Remains White

Remains Grey

Max Temperature Intermittent

240Deg F

410Deg F

580Deg F

300Deg F

450Deg F

578Deg F

Max Temperature Continuous

210Deg F

380Deg F

490Deg F

260Deg F

400Deg F

526Deg F

Minimum Temperature

-65

-20

-85

-70

-350

-370

USP Class VI

No

Yes

Yes

Yes

Yes

Yes

Steam in Place Performance

Poor

Good

Good

Good

Good

Excellent

Acids, Dilute

Good

Excellent

Good

Good

Excellent

Excellent

Alkalies

Good

Good

Excellent

Excellent

Excellent

Excellent

Alcohol, Glycols

Excellent

Good

Excellent

Excellent

Excellent

Excellent

Animal Oils & Fats

Excellent

Excellent

Good

Fair

Excellent

Excellent

Soaps, Bleaches, Detergents

Fair/Good

Good

Fair

Excellent

Excellent

Excellent

Vegetable Oil

Excellent

Excellent

Excellent

Fair

Excellent

Excellent

Water

Good

Excellent

Good

Excellent

Excellent

Excellent
