Trynox Sanitary Ball Valve Clamp Ends

SKU:
TBBACC
UPC:
7453017313039
  • Trynox Sanitary Ball Valve Clamp Ends
  • Trynox Sanitary Ball Valve Clamp Ends
  • Trynox Sanitary Ball Valve Clamp Ends
  • Trynox Sanitary Ball Valve Clamp Ends
MSRP: $948.00
$98.05
— You save $849.95

Description

Ball Valves:

Trynox sanitary ball valve clamp ends are a form of quarter-turn valve that uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.

Sanitary Valves

Valves are process components that provide dynamic seals within the process. Is a device that regulates, directs or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries) by opening, closing, or partially obstructing various passageways. Valves are technically fittings, but are usually discussed as a separate category. In an open valve, fluid flows in a direction from higher pressure to lower pressure. They also provide seals between the process and the atmosphere.

Perfect For Your Homebrew Operations

Though Chemseal’s Trynox sanitary ball valve clamp ends are ideal to use in your homebrew, these sanitary fittings work great in a variety of industries.

  • Surface finishing 180 Grit ID/150 Grit OD
  • Ultra-slim design
  • Maximum operating pressure rating of 140 psi (depending on valve size) at 70 degrees Fahrenheit
  • Fits to sanitary stainless steel tubing
  • The ball valve is available in both 304 and 316L stainless steel alloys
  • Available in sizes ranging from 1 inch all the way to 3 inches

Chemseal has decades of experience in providing a wide variety of durable sanitary stainless steel ball valves and other accompanying components. Our wide selection of stainless steel parts and metal tube fittings are sure to exceed the expectations of your industry, or add quality control to your homebrewing process. These valves come with a Teflon and EPDM seal as a preset, which Chemseal can change upon your request. The value of Chemseal’s sanitary stainless steel ball valves and other sanitary stainless steel fittings is virtually unmatched in today’s market. Get in contact with us today if you wish to learn more about our productions or simply have any questions we can answer. You’ll be able to speak directly with our team of experts and make the most informed purchase possible.

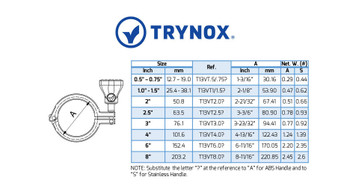

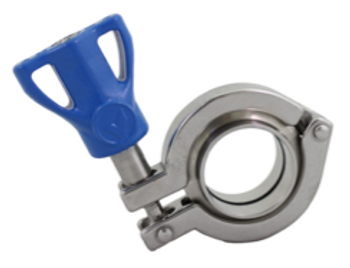

Tri-Clamp Sizing Guide

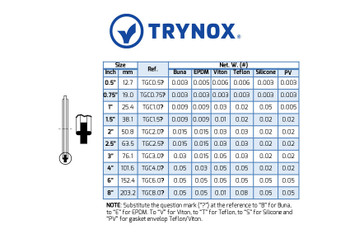

Tri-Clamp Fittings and Gasket Sizing Guide

Sanitary Fitting Dimensions



Sanitary SizeOD of Flange EndID of TubeOD of Tube
1/2″ 0.992 0.370 0.500
3/4″ 0.992 0.620 0.750
1″ 1.984 0.870 1.000
1 1/2″ 1.984 1.370 1.500
2″ 2.516 1.870 2.000
2 1/2″ 3.047 2.370 2.500
3″ 3.579 2.870 3.000
4″ 4.682 3.834 4.000
6″ 6.562 5.782 6.000
8″ 8.602 7.782 8.000

Tubing Dimensional Tolerances

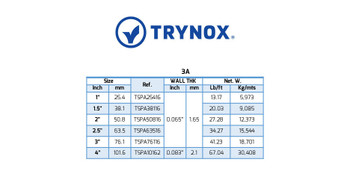

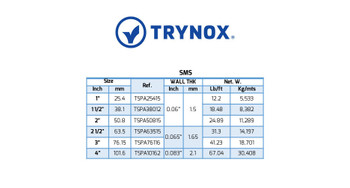

A-270 Sanitary Tubing Dimensional Tolerances

Tubing



A tube, or tubing, is a long hollow cylinder used for moving fluids (liquids or gases)

For Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries must be manufactured in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra, Following standards like ASTM A-269; A-270, DIN 11805 or ENxxxxx

All dimensions in inches (mm)

Size OD

Wall Thickness

Outside Diameter

Length

Wall

1" (25.4)

0.065" (1.65)/0.049" (1.25)

+/-0.005 (0.13)

+1/8" (3.18)

- 0 +/-10.0%

1-1/2" (38.1)

0.065" (1.65)/0.049" (1.25)

+/-0.008 (0.20)

+1/8" (3.18)

- 0 +/-10.0%

2" (50.8)

0.065" (1.65)/0.049" (1.25)

+/-0.008 (0.20)

+1/8" (3.18)

- 0 +/-10.0%

2-1/2" (63.5)

0.065" (1.65)

+/-0.010 (0.25)

+1/8" (3.18)

- 0 +/-10.0%

3" (76.2)

0.065" (1.65)

+/-0.010 (0.25)

+1/8" (3.18)

- 0 +/-10.0%

4" (101.6)

0.083" (2.11)

+/-0.015 (0.38)

+1/8" (3.18)

- 0 +/-10.0%

Gasket Compatibility Chart

Sanitary Gaskets General Performance Properties



Nitrite (Buna)

Fluoro-Elastomer(Viton)

Platinum Cured Silicone Elastomer

Ethylene-Propylene Diene Monomer(EPDM)

PolyTetra Fluoro Ethylene(Teflon)

Tufsteel

Letter Designation

SFY

PX

EPDM

GTS

Sanitary Gasket Color Code

RED

Yellow & White

Pink

Green

Remains White

Remains Grey

Max Temperature Intermittent

240Deg F

410Deg F

580Deg F

300Deg F

450Deg F

578Deg F

Max Temperature Continuous

210Deg F

380Deg F

490Deg F

260Deg F

400Deg F

526Deg F

Minimum Temperature

-65

-20

-85

-70

-350

-370

USP Class VI

No

Yes

Yes

Yes

Yes

Yes

Steam in Place Performance

Poor

Good

Good

Good

Good

Excellent

Acids, Dilute

Good

Excellent

Good

Good

Excellent

Excellent

Alkalies

Good

Good

Excellent

Excellent

Excellent

Excellent

Alcohol, Glycols

Excellent

Good

Excellent

Excellent

Excellent

Excellent

Animal Oils & Fats

Excellent

Excellent

Good

Fair

Excellent

Excellent

Soaps, Bleaches, Detergents

Fair/Good

Good

Fair

Excellent

Excellent

Excellent

Vegetable Oil

Excellent

Excellent

Excellent

Fair

Excellent

Excellent

Water

Good

Excellent

Good

Excellent

Excellent

Excellent
