Trynox Sanitary "L"Type Filter

SKU:
TSFALBC1.56D1
UPC:
7453017323076
  • Trynox Sanitary "L"Type Filter
  • Trynox Sanitary "L"Type Filter
  • Trynox Sanitary "L"Type Filter
  • Trynox Sanitary "L"Type Filter
  • Trynox Sanitary "L"Type Filter
$800.00 - $1,050.00

Description

Separate Undesirable Particles From Liquid Products With Our “L” Type Filter

Chemseal’s Trynox Sanitary “L” Type Filter uses hygienic, sanitary stainless steel fittings to filter out unwanted particles in your hygienic fluid operation, leaving only what’s desired.

  • Surface finishing 180 Grit ID/150 Grit OD
  • Fits to Sanitary Stainless Steel Tubing
  • Fast and easy take-down assembly and cleaning
  • Maximum operating pressure rating of 140 psi at 70 degrees Fahrenheit ambient temperature

Thanks to Chemseal’s Trynox Sanitary “L” Type Filter, and its sanitary stainless steel components, your hygienic fluid operation will benefit by removing the unwanted particles in your process, leaving you with your intended product. This sanitary stainless steel fitting and filter works great for nearly any sanitary liquid process industry, including the food and beverage industries. Your business can trust Chemseal to provide you with the very best in sanitary “L” type filters, along with our wide selection of other great sanitary valves, sanitary tubing, and other sanitary stainless steel fittings.

SPECS:

  • Trynox TSFALBC Sanitary “L” Type Filter
  • 316L grade
  • 1.5”, 2”, 2.5” and 3” sizes

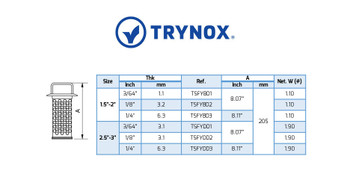

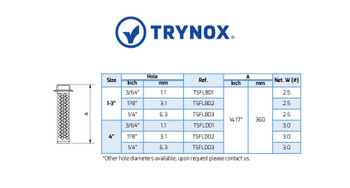

  • 3/64” type strainer hole

Tri-Clamp Sizing Guide

Tri-Clamp Fittings and Gasket Sizing Guide

Sanitary Fitting Dimensions



Sanitary SizeOD of Flange EndID of TubeOD of Tube
1/2″ 0.992 0.370 0.500
3/4″ 0.992 0.620 0.750
1″ 1.984 0.870 1.000
1 1/2″ 1.984 1.370 1.500
2″ 2.516 1.870 2.000
2 1/2″ 3.047 2.370 2.500
3″ 3.579 2.870 3.000
4″ 4.682 3.834 4.000
6″ 6.562 5.782 6.000
8″ 8.602 7.782 8.000

Tubing Dimensional Tolerances

A-270 Sanitary Tubing Dimensional Tolerances

Tubing



A tube, or tubing, is a long hollow cylinder used for moving fluids (liquids or gases)

For Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries must be manufactured in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra, Following standards like ASTM A-269; A-270, DIN 11805 or ENxxxxx

All dimensions in inches (mm)

Size OD

Wall Thickness

Outside Diameter

Length

Wall

1" (25.4)

0.065" (1.65)/0.049" (1.25)

+/-0.005 (0.13)

+1/8" (3.18)

- 0 +/-10.0%

1-1/2" (38.1)

0.065" (1.65)/0.049" (1.25)

+/-0.008 (0.20)

+1/8" (3.18)

- 0 +/-10.0%

2" (50.8)

0.065" (1.65)/0.049" (1.25)

+/-0.008 (0.20)

+1/8" (3.18)

- 0 +/-10.0%

2-1/2" (63.5)

0.065" (1.65)

+/-0.010 (0.25)

+1/8" (3.18)

- 0 +/-10.0%

3" (76.2)

0.065" (1.65)

+/-0.010 (0.25)

+1/8" (3.18)

- 0 +/-10.0%

4" (101.6)

0.083" (2.11)

+/-0.015 (0.38)

+1/8" (3.18)

- 0 +/-10.0%

Gasket Compatibility Chart

Sanitary Gaskets General Performance Properties



Nitrite (Buna)

Fluoro-Elastomer(Viton)

Platinum Cured Silicone Elastomer

Ethylene-Propylene Diene Monomer(EPDM)

PolyTetra Fluoro Ethylene(Teflon)

Tufsteel

Letter Designation

SFY

PX

EPDM

GTS

Sanitary Gasket Color Code

RED

Yellow & White

Pink

Green

Remains White

Remains Grey

Max Temperature Intermittent

240Deg F

410Deg F

580Deg F

300Deg F

450Deg F

578Deg F

Max Temperature Continuous

210Deg F

380Deg F

490Deg F

260Deg F

400Deg F

526Deg F

Minimum Temperature

-65

-20

-85

-70

-350

-370

USP Class VI

No

Yes

Yes

Yes

Yes

Yes

Steam in Place Performance

Poor

Good

Good

Good

Good

Excellent

Acids, Dilute

Good

Excellent

Good

Good

Excellent

Excellent

Alkalies

Good

Good

Excellent

Excellent

Excellent

Excellent

Alcohol, Glycols

Excellent

Good

Excellent

Excellent

Excellent

Excellent

Animal Oils & Fats

Excellent

Excellent

Good

Fair

Excellent

Excellent

Soaps, Bleaches, Detergents

Fair/Good

Good

Fair

Excellent

Excellent

Excellent

Vegetable Oil

Excellent

Excellent

Excellent

Fair

Excellent

Excellent

Water

Good

Excellent

Good

Excellent

Excellent

Excellent
