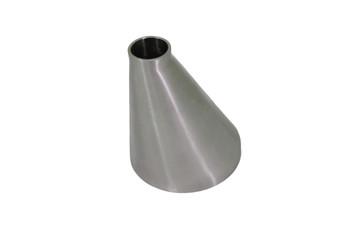

Trynox Sanitary SMS Welding Concentric Reducer

SKU:
T31W
UPC:
7453017305829
On Sale
  • Trynox Sanitary SMS Welding Concentric Reducer
  • Trynox Sanitary SMS Welding Concentric Reducer
  • Trynox Sanitary SMS Welding Concentric Reducer
$6.61 - $25.02

Description

A Concentric Reducer Specifically Designed To Meet SMS Standards

Good for use in the food, beverage, biotech and other hygienic process industries, this Trynox Sanitary SMS Welding Concentric Reducer is perfect for your sanitary operation.

  • Fits to sanitary stainless steel tubing
  • Surface finishing 180 Grit ID/150 Grit OD
  • Maximum operating pressure rating of 200 psi at 70 degrees Fahrenheit ambient temperature
  • For use in multiple industries and SMS certified
  • The weld end concentric reducer is available in both 304 and 316L stainless steel alloys
  • Available in sizes ranging from 1/2 inch all the way to 4 inches

We take Swedish Milk Standards seriously here at our sanitary fittings company. That’s why Chemseal only carries the best sanitary stainless steel fittings to help out your business. Ensure that you meet or surpass SMS while easily connecting, terminating, controlling and changing your hygienic product flow direction with our sanitary fittings. Chemseal’s Trynox Sanitary Welding Concentric Reducer is a great, high-quality concentric reducer due to the grade of our stainless steel. Shop today!

Tri-Clamp Sizing Guide

Tri-Clamp Fittings and Gasket Sizing Guide

Sanitary Fitting Dimensions



Sanitary SizeOD of Flange EndID of TubeOD of Tube
1/2″ 0.992 0.370 0.500
3/4″ 0.992 0.620 0.750
1″ 1.984 0.870 1.000
1 1/2″ 1.984 1.370 1.500
2″ 2.516 1.870 2.000
2 1/2″ 3.047 2.370 2.500
3″ 3.579 2.870 3.000
4″ 4.682 3.834 4.000
6″ 6.562 5.782 6.000
8″ 8.602 7.782 8.000

Tubing Dimensional Tolerances

A-270 Sanitary Tubing Dimensional Tolerances

Tubing



A tube, or tubing, is a long hollow cylinder used for moving fluids (liquids or gases)

For Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries must be manufactured in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra, Following standards like ASTM A-269; A-270, DIN 11805 or ENxxxxx

All dimensions in inches (mm)

Size OD

Wall Thickness

Outside Diameter

Length

Wall

1" (25.4)

0.065" (1.65)/0.049" (1.25)

+/-0.005 (0.13)

+1/8" (3.18)

- 0 +/-10.0%

1-1/2" (38.1)

0.065" (1.65)/0.049" (1.25)

+/-0.008 (0.20)

+1/8" (3.18)

- 0 +/-10.0%

2" (50.8)

0.065" (1.65)/0.049" (1.25)

+/-0.008 (0.20)

+1/8" (3.18)

- 0 +/-10.0%

2-1/2" (63.5)

0.065" (1.65)

+/-0.010 (0.25)

+1/8" (3.18)

- 0 +/-10.0%

3" (76.2)

0.065" (1.65)

+/-0.010 (0.25)

+1/8" (3.18)

- 0 +/-10.0%

4" (101.6)

0.083" (2.11)

+/-0.015 (0.38)

+1/8" (3.18)

- 0 +/-10.0%

Gasket Compatibility Chart

Sanitary Gaskets General Performance Properties



Nitrite (Buna)

Fluoro-Elastomer(Viton)

Platinum Cured Silicone Elastomer

Ethylene-Propylene Diene Monomer(EPDM)

PolyTetra Fluoro Ethylene(Teflon)

Tufsteel

Letter Designation

SFY

PX

EPDM

GTS

Sanitary Gasket Color Code

RED

Yellow & White

Pink

Green

Remains White

Remains Grey

Max Temperature Intermittent

240Deg F

410Deg F

580Deg F

300Deg F

450Deg F

578Deg F

Max Temperature Continuous

210Deg F

380Deg F

490Deg F

260Deg F

400Deg F

526Deg F

Minimum Temperature

-65

-20

-85

-70

-350

-370

USP Class VI

No

Yes

Yes

Yes

Yes

Yes

Steam in Place Performance

Poor

Good

Good

Good

Good

Excellent

Acids, Dilute

Good

Excellent

Good

Good

Excellent

Excellent

Alkalies

Good

Good

Excellent

Excellent

Excellent

Excellent

Alcohol, Glycols

Excellent

Good

Excellent

Excellent

Excellent

Excellent

Animal Oils & Fats

Excellent

Excellent

Good

Fair

Excellent

Excellent

Soaps, Bleaches, Detergents

Fair/Good

Good

Fair

Excellent

Excellent

Excellent

Vegetable Oil

Excellent

Excellent

Excellent

Fair

Excellent

Excellent

Water

Good

Excellent

Good

Excellent

Excellent

Excellent
