Description
Small Sanitary Stainless Steel Parts Are Just As Important As Large Ones
Hex tube rubber hangers are relatively common sanitary stainless steel fittings that many industries rely on. Our Trynox sanitary hex tube rubber hanger is a perfect way to help complete the job.
- Fits to sanitary stainless steel tubing
- Two-piece design makes for easy disassembly, maintenance and clean-up
- Comes with EPDM support
- Available in multiple sizes and materials
Chemseal’s Trynox sanitary hex tube rubber hanger is a perfect sanitary fitting to incorporate in your sanitary fluids operation. Chemseal’s Trynox sanitary hex tube rubber hanger is a high-quality stainless steel fitting tool used to connect, terminate, control and change the direction of tubing in many different industries. We offer the best sanitary hex tube rubber hanger in the integral solutions market, along with Chemseal’s other sanitary industrial valves and stainless steel tube fittings.

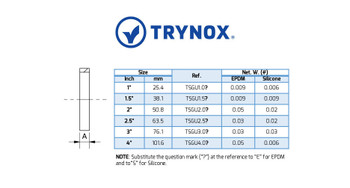

SPECS:
- Trynox T26R sanitary rubber hex tube hanger
- 304 grade
- 1”, 1.5”, 2”, 2.5”, 3” or 4” sizes
Tri-Clamp Sizing Guide
Tri-Clamp Fittings and Gasket Sizing Guide
| Sanitary Size | OD of Flange End | ID of Tube | OD of Tube |
|---|---|---|---|
| 1/2″ | 0.992 | 0.370 | 0.500 |
| 3/4″ | 0.992 | 0.620 | 0.750 |
| 1″ | 1.984 | 0.870 | 1.000 |
| 1 1/2″ | 1.984 | 1.370 | 1.500 |
| 2″ | 2.516 | 1.870 | 2.000 |
| 2 1/2″ | 3.047 | 2.370 | 2.500 |
| 3″ | 3.579 | 2.870 | 3.000 |
| 4″ | 4.682 | 3.834 | 4.000 |
| 6″ | 6.562 | 5.782 | 6.000 |
| 8″ | 8.602 | 7.782 | 8.000 |
Tubing Dimensional Tolerances
A-270 Sanitary Tubing Dimensional Tolerances
Tubing
A tube, or tubing, is a long hollow cylinder used for moving fluids (liquids or gases)
For Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries must be manufactured in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra, Following standards like ASTM A-269; A-270, DIN 11805 or ENxxxxx
All dimensions in inches (mm)
|
Size OD |
Wall Thickness |
Outside Diameter |
Length |
Wall |
|
1" (25.4) |
0.065" (1.65)/0.049" (1.25) |
+/-0.005 (0.13) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
1-1/2" (38.1) |
0.065" (1.65)/0.049" (1.25) |
+/-0.008 (0.20) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
2" (50.8) |
0.065" (1.65)/0.049" (1.25) |
+/-0.008 (0.20) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
2-1/2" (63.5) |
0.065" (1.65) |
+/-0.010 (0.25) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
3" (76.2) |
0.065" (1.65) |
+/-0.010 (0.25) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
4" (101.6) |
0.083" (2.11) |
+/-0.015 (0.38) |
+1/8" (3.18) |
- 0 +/-10.0% |
Gasket Compatibility Chart
Sanitary Gaskets General Performance Properties
|
Nitrite (Buna) |
Fluoro-Elastomer(Viton) |
Platinum Cured Silicone Elastomer |
Ethylene-Propylene Diene Monomer(EPDM) |
PolyTetra Fluoro Ethylene(Teflon) |
Tufsteel |
|
|
Letter Designation |
U |
SFY |
PX |
EPDM |
G |
GTS |
|
Sanitary Gasket Color Code |
RED |
Yellow & White |
Pink |
Green |
Remains White |
Remains Grey |
|
Max Temperature Intermittent |
240Deg F |
410Deg F |
580Deg F |
300Deg F |
450Deg F |
578Deg F |
|
Max Temperature Continuous |
210Deg F |
380Deg F |
490Deg F |
260Deg F |
400Deg F |
526Deg F |
|
Minimum Temperature |
-65 |
-20 |
-85 |
-70 |
-350 |
-370 |
|
USP Class VI |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Steam in Place Performance |
Poor |
Good |
Good |
Good |
Good |
Excellent |
|
Acids, Dilute |
Good |
Excellent |
Good |
Good |
Excellent |
Excellent |
|
Alkalies |
Good |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
|
Alcohol, Glycols |
Excellent |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
|
Animal Oils & Fats |
Excellent |
Excellent |
Good |
Fair |
Excellent |
Excellent |
|
Soaps, Bleaches, Detergents |
Fair/Good |
Good |
Fair |
Excellent |
Excellent |
Excellent |
|
Vegetable Oil |
Excellent |
Excellent |
Excellent |
Fair |
Excellent |
Excellent |
|
Water |
Good |
Excellent |
Good |
Excellent |
Excellent |
Excellent |
